Descripción del Artí­culo

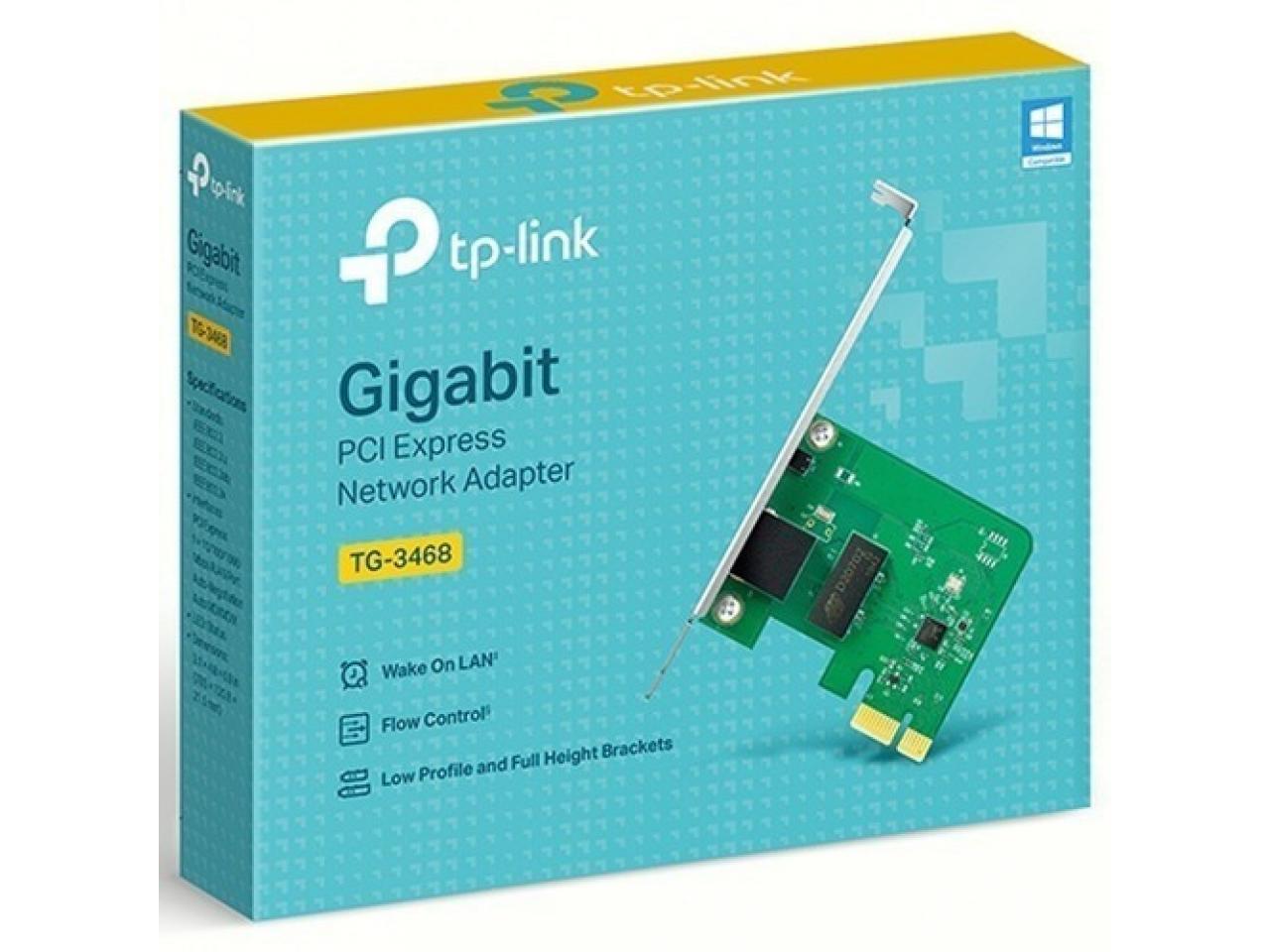

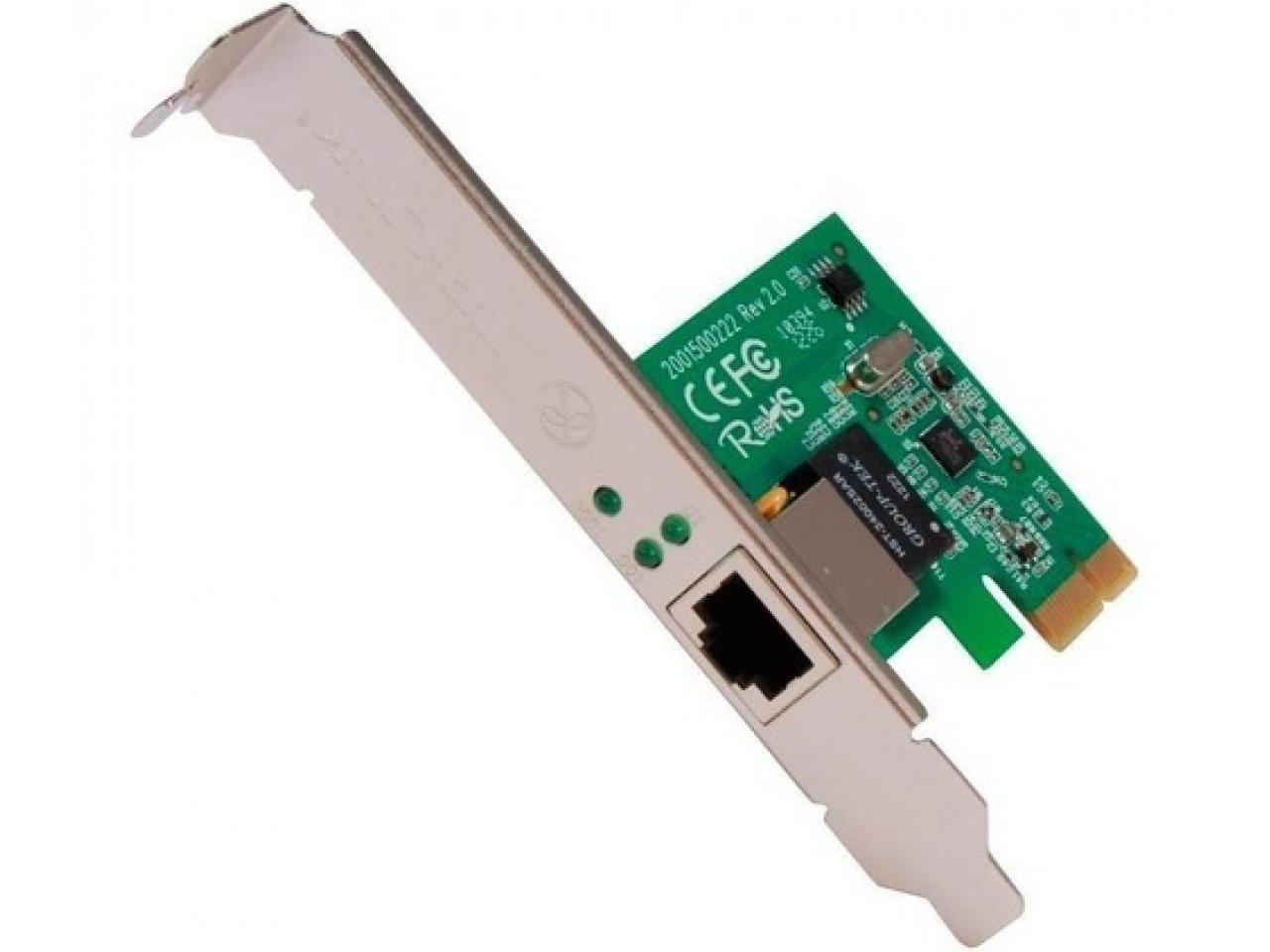

Ethernet Pci-e Tp-link Tg-3468 Giga
Ver Más
CARACTERÍSTICAS DE HARDWARE
Estándares y Protocolos IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
Interface 32-bit PCI Express
1 10/100/1000Mbps RJ45 port
Medios de Red 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Status
Estándares Inalámbricos IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Velocidad de Datos 10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode
Indicador LED 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
Dimensiones 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)
Control de Flujo IEEE 802.3x Flow Control (Full-Duplex)
OTROS
Certificacion CE, FCC, RoHS
Contenidos del Paquete Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide
Requisitos del Sistema Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)
Ambiente Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
